diaphragm_sealed_valves_1_d1v_series_male_Low_Pressure_Manual_DQ_Series_Low_Ultrahigh_Purity_High_Pressure_DPH_Series_Straight_Pattern_with_Actuator_round_handle.webp

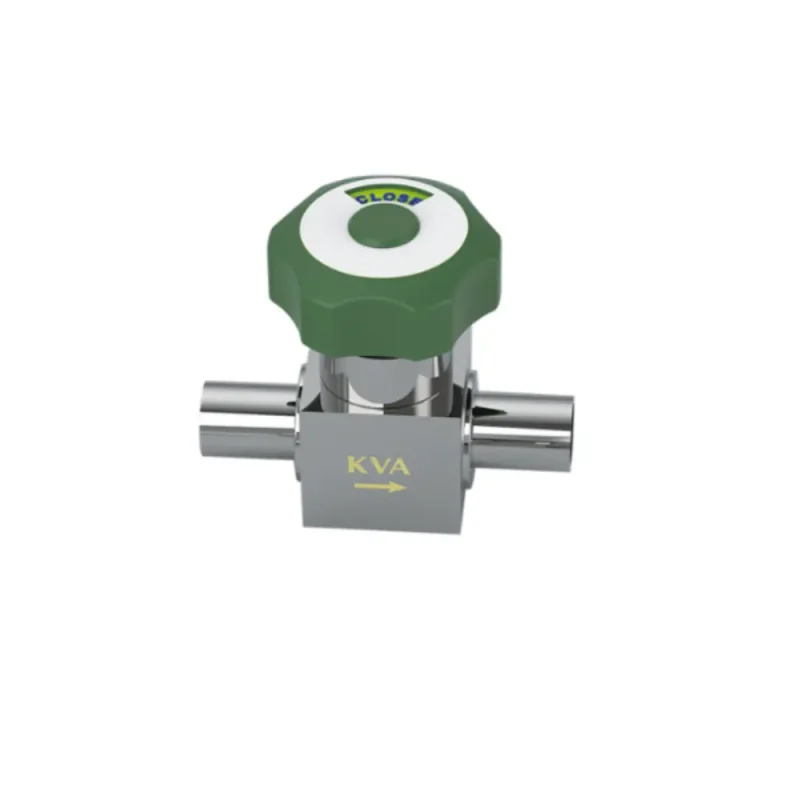

316L Stainless Steel, D1V Series , 1/2 in. TBW, 3500 psig(241 bar), -10°F to 150°F (-23°C to 65°C), 0.8 Cv, Round Handle

Part Number: 6L-D1V-TB8

Specifications

Connection Type Tube Butt Weld
Port Size 1/2 in.
Port Type Fractional Tube Butt Weld
Body Material 316L Stainless Steel

Downloads

Product Catalogs

High Purity Fittings

VR Series Metal Gasket Face Seal Fittings

Drawings

Other Resources

Locking Devices for VR Series Face Seal Fittings

KAVYA Group Company Brochure
